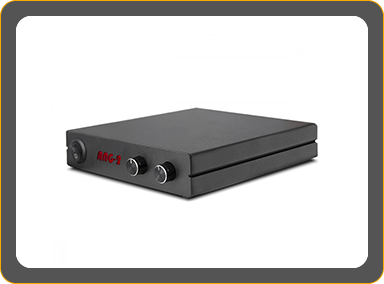

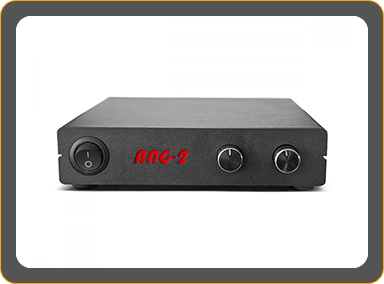

ANG-2 Vibroacoustic Generator

A discrete white noise generator, including vibroacoustic noise, protects offices and meeting rooms from laser or stethoscopic eavesdropping. Easily place noise generators on windows, window frames or ceilings. The acoustic noise function protects against eavesdropping through walls. In addition, you can connect the generators to two independent channels and control each one separately. This is the corded version of the generators, replacing our wireless ANG-5W and ANG-5T generators.

Book a Demo

• It will vibrate with vibroacoustic noise window panes and provide protection from the laser microphone.
• It generates acoustic noise that protects against eavesdropping by the stethoscope through the wall.
• It is discrete and does not interfere with important meetings with business partners.
• Allows speakers to be connected to acoustic protection against hidden eavesdroppers in ceilings, vents and other spaces.
• Possibility to connect vibroacoustic noise generators to two independent channels.

Minimize the risk of data leakage with the ANG-2 sspeech protector. Many competing solutions only generate white noise. However, our speech protector contains 15 vibroacoustic noise generators, which, when installed on the window, vibrate the board and thus make it impossible to eavesdrop with a laser microphone. If necessary, a significantly larger number of these generators can be connected to the speech protector. In addition, you can easily connect them into two circuits and thus get the option of independent control. The speech protector also offers the option of additional speakers for generating acoustic noise. Thanks to this you will be safe from eavesdropping with a stethoscope microphone. This unique combination of noises ensures that sensitive information does not leak out of your meetings. Are you looking for a wireless window and ceiling speech protector? In our offer you will find two different models:

• You can easily place the ANG-5W vibroacoustic generator directly on the window panels.
• Vibroacoustic generator ANG-5T is simply placed between window frames, in soffits or air conditioning pipes.

ANG-2 Vibroacoustic Generator

Parameters

Noise interference spectrum- 400 Hz to 6.2 kHz

Output level setting range - 42 dB

Power - 2x 8 W

Number of independent channels - 2

Number of piezoelectric emitters per window connected to one channel - 24

Minimum load - 4 Ohms

Number of acoustic generators connected to one channel - 8

Power - 220 V

The package contains

• 1x Speech protector ANG-2 1x Adapter for power supply of ANG-2 unit 15x vibroacoustic noise generator

Please note: Power cables for vibroacoustic generators and in-ceiling speakers are not included.

Acoustic noise

It protects against eavesdropping through the wall with a stethoscope microphone, and even prevents eavesdropping through window panes with a laser microphone. Acoustic noise provides an additional level of protection against eavesdropping based on technology other than conventional microphones. It protects, for example, against a third party who would like to eavesdrop on you from afar. Acoustic noise generates different voices, which you can also record into the speech protector. These then overlay the conversation itself – so they are audible to others.

Instructions For Use

Place the EO-1 omnidirectional speech protector in the space where you want to block wiretapping and protect the progress of the meeting. Consider that the effective jamming range is about 30 meters from the jammer. You can control the jammer using the remote control. You can use one of the following modes.

• A: Silent Ultrasound – suppresses high-quality voice recorders
• B: Device off – the protection is switched off
• C: Ultrasonic and Silent Acoustic Noise – is the main operating mode that allows you to act comfortably and protects you against all types of eavesdropping devices
• D: Ultrasound and loud acoustic noise – maximum protection mode, used when you need to fully protect information at the cost of negotiation comfort

You can record your own voices into the acoustic noise by pressing the volume button for 4 seconds, the EO-1 will flash, this will start the recording. We recommend at least 5 minutes of conversation on some unimportant topic. The speech protector will then randomly generate words and effectively overlay your conversation. Acoustic noise is a unique solution that you will find on all of our speech protectors.

DOWNLOADS

ANG-2 Datasheet CZ.pdf

ANG-2 Datasheet ENG.pdf
